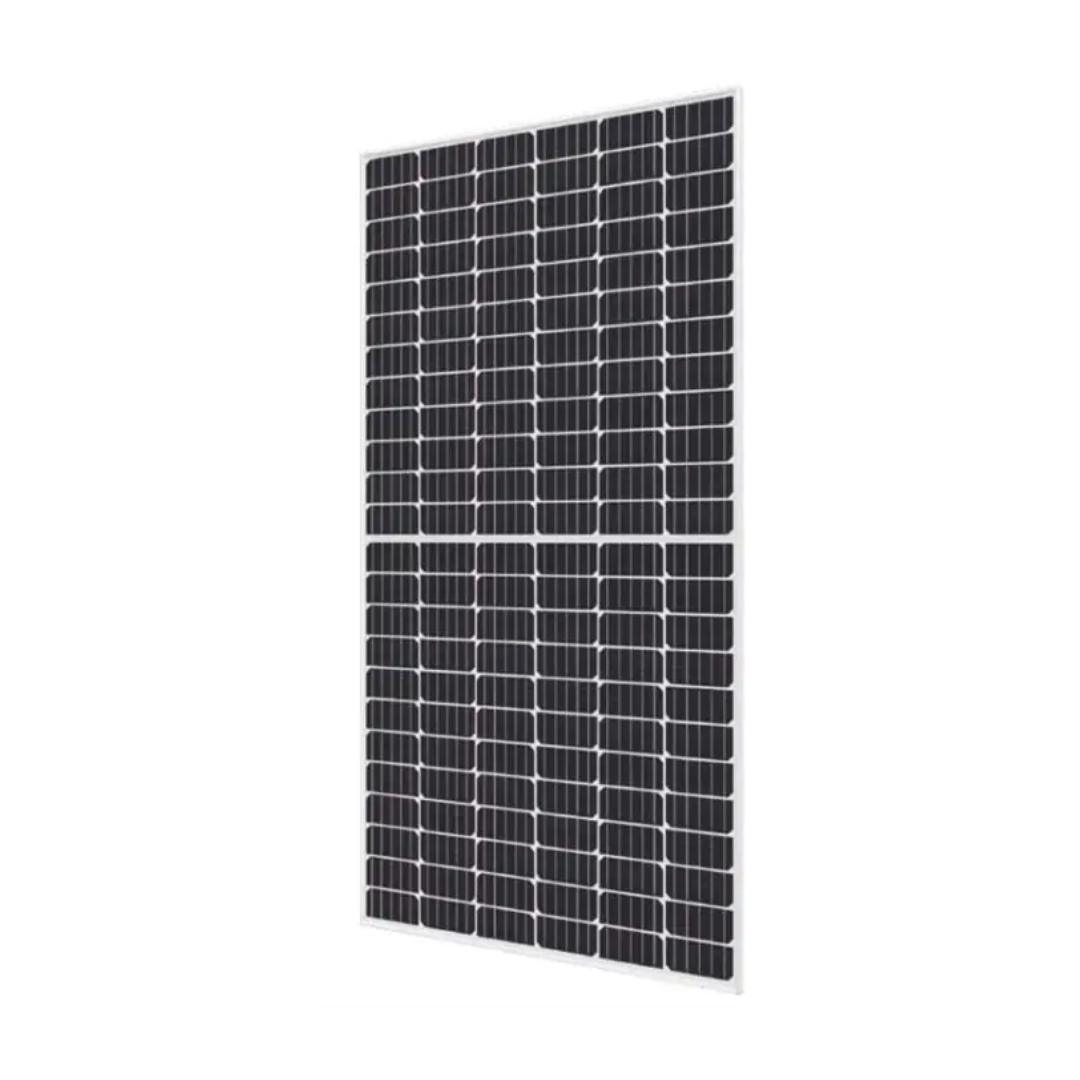

HYUNDAI SOLAR MODULE
Maximized Power Generation
Dual Black Max bifacial solar modules (385W-410W) with 20.5% efficiency, featuring half-cut cell technology and 9BB wiring.
More Power
- Up to 20.5% module efficiency
- Low temp coefficient: -0.347%/°C (Pmax)
- Bifacial gain up to 25% additional power
More Reliable
- Withstands 5400 Pa snow load
- Reduced LID/PID degradation
- 25-year product & power warranty
Certifications
UL 61730 (Fire Class A)
IEC 61215/61730
VDE Tested
Mechanical Specifications
| Cell Type | 132 half-cut bifacial cells (2×66) |
| Dimensions | 1924 × 1038 × 35 mm |
| Weight | 21.1 kg |
| Front Glass | 3.2mm AR coated tempered glass |
| Backsheet | Black meshed transparent |
| Frame | Anodized aluminum alloy 6063 |
| J-Box | IP68, 3 bypass diodes |
| Cable | 4mm², 1200mm with MC4 connectors |
Electrical Data (STC*)
| Model | Pmax (W) | Vmp (V) | Imp (A) | Efficiency |
|---|---|---|---|---|
| HiS-S385YH(BK) | 385 | 37.1 | 10.40 | 19.3% |
| HiS-S390YH(BK) | 390 | 37.3 | 10.47 | 19.5% |
| HiS-S400YH(BK) | 400 | 37.7 | 10.61 | 20.0% |
| HiS-S410YH(BK) | 410 | 38.1 | 10.76 | 20.5% |
*STC: 1000 W/m², 25°C, AM 1.5 spectrum
Bifacial Power Gain
| Model | 5% Gain | 15% Gain | 25% Gain |
|---|---|---|---|
| HiS-S385YH(BK) | 399W | 437W | 475W |
| HiS-S390YH(BK) | 404W | 443W | 482W |
| HiS-S410YH(BK) | 431W | 472W | 513W |
Temperature Characteristics
Power Temperature Coefficient
-0.347%/°C
Voltage Temperature Coefficient
-0.268%/°C
Current Temperature Coefficient
+0.032%/°C
Nominal Operating Temp.
45.5±2°C
Performance Warranty
25-Year Linear Warranty
0.54% annual degradation after Year 1
85% at Year 25
Year 198% of nominal power
Year 2585% of nominal power
Quick Specifications
Power Range385W-410W
Module EfficiencyUp to 20.5%
Dimensions1924 × 1038 × 35 mm
Weight21.1 kg
Max System Voltage1500V
PRODUCT WARRANTY
25 Years
POWER WARRANTY
25 Years
Key Technology
- Half-cut bifacial cells
- 9BB multi-wire technology
- Reduced LID/PID degradation
