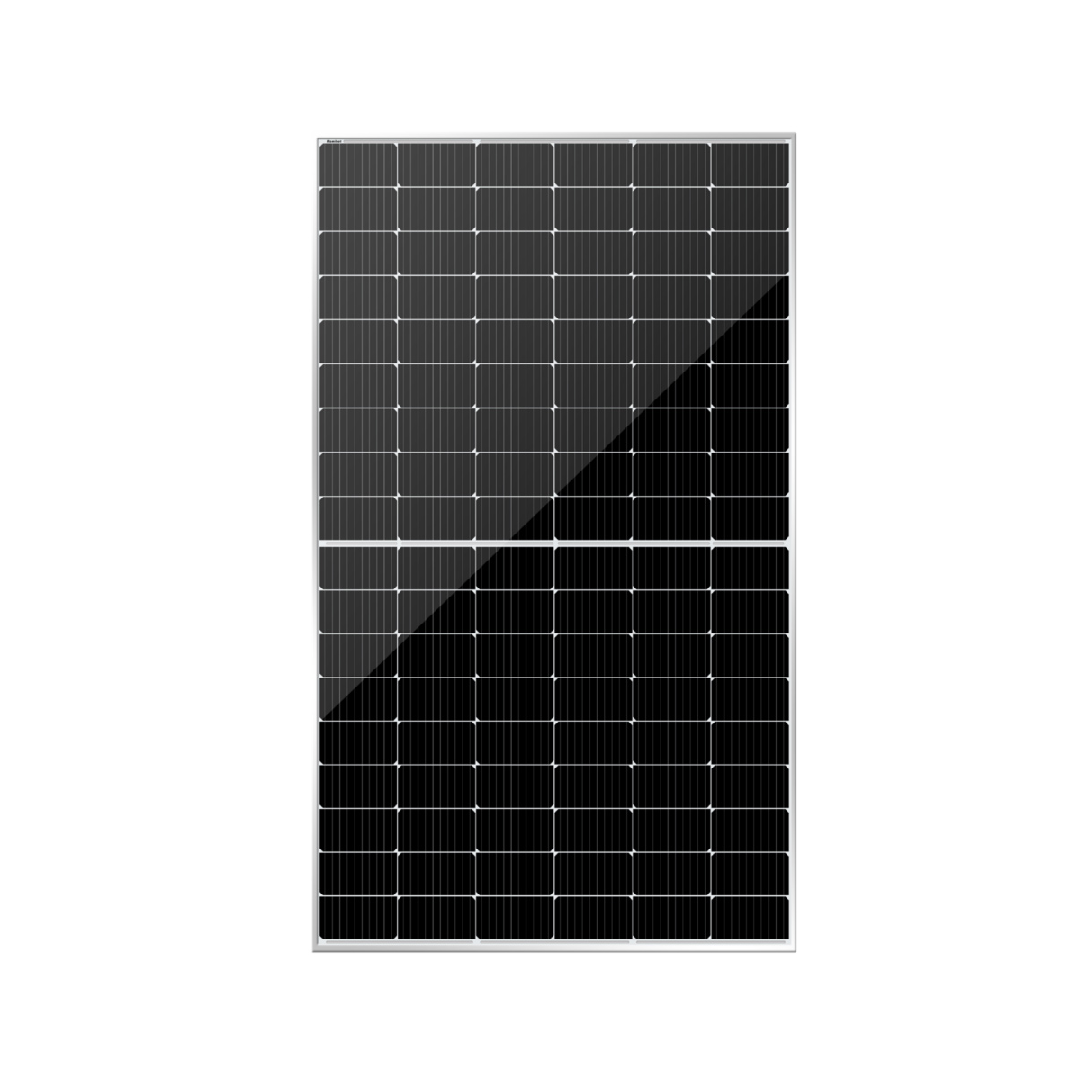

Canadian Solar HiDM CS1U-MS
High density MONO PERC module
High-density mono PERC solar modules (400W-420W) with 20.4% efficiency, designed for residential, commercial, and utility-scale applications.
More Power
- Up to 20.4% module efficiency
- Low temp coefficient: -0.37%/°C (Pmax)
- 25-year linear power warranty
More Reliable
- Enhanced shading tolerance
- Withstands 5400 Pa snow load
- 15-year product warranty
Certifications
IEC 61215/61730
CE
VDE
Mechanical Specifications
| Cell Type | Mono-crystalline |
| Dimensions | 2078 × 992 × 35 mm |
| Weight | 23.4 kg |
| Front Cover | 3.2 mm tempered glass |
| Frame | Anodized aluminum alloy |
| J-Box | IP68, 4 bypass diodes |
| Cable | 4.0 mm², length 1000 mm / 640 mm |
Electrical Data (STC*)
| Model | Pmax (W) | Vmp (V) | Imp (A) | Efficiency |
|---|---|---|---|---|
| CS1U-400MS | 400 | 44.1 | 9.08 | 19.4% |
| CS1U-405MS | 405 | 44.3 | 9.16 | 19.6% |
| CS1U-420MS | 420 | 44.9 | 9.37 | 20.4% |
*STC: 1000 W/m², 25°C, AM 1.5 spectrum
Temperature Characteristics
Power Temperature Coefficient
-0.37%/°C
Voltage Temperature Coefficient
-0.29%/°C
Current Temperature Coefficient
0.05%/°C
Nominal Operating Temp.
43±3°C
Quick Specifications
Power Range400W-420W
Module EfficiencyUp to 20.4%
Dimensions2078 × 992 × 35 mm
Weight23.4 kg
PRODUCT WARRANTY
15 Years
POWER WARRANTY
25 Years
